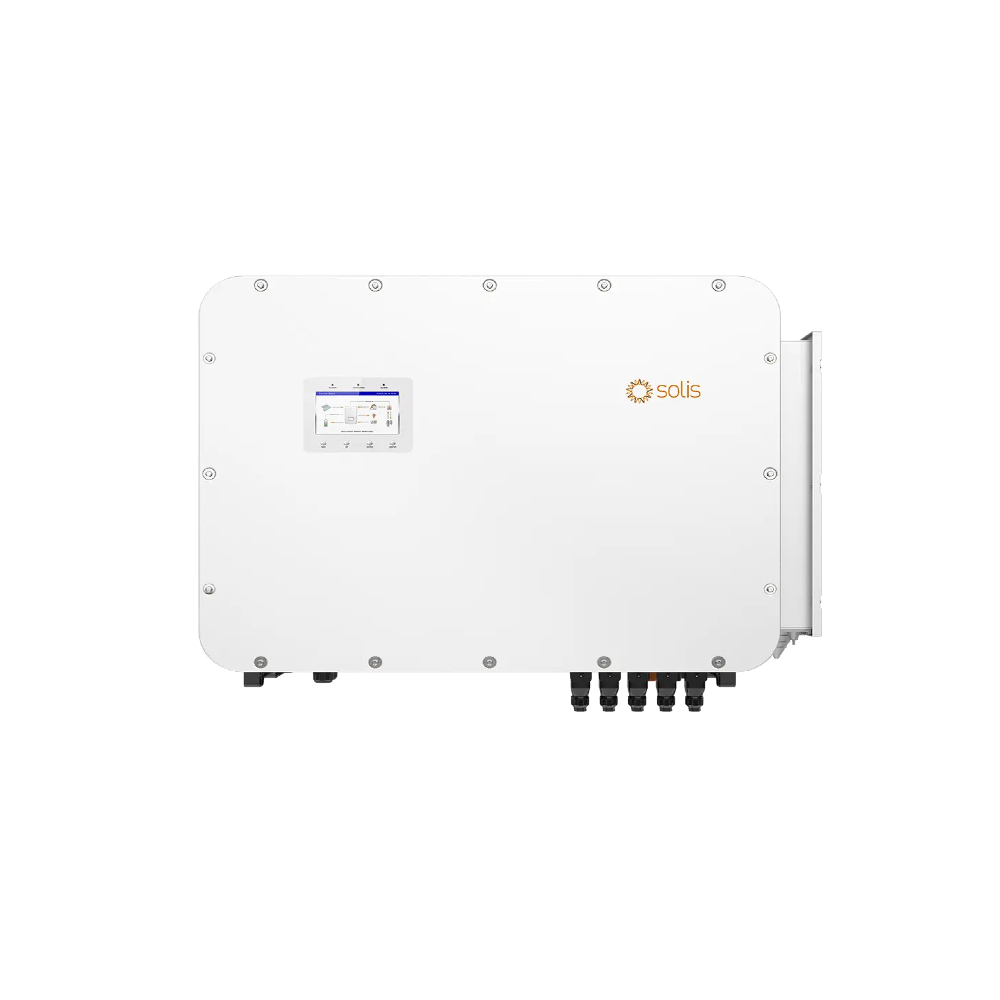

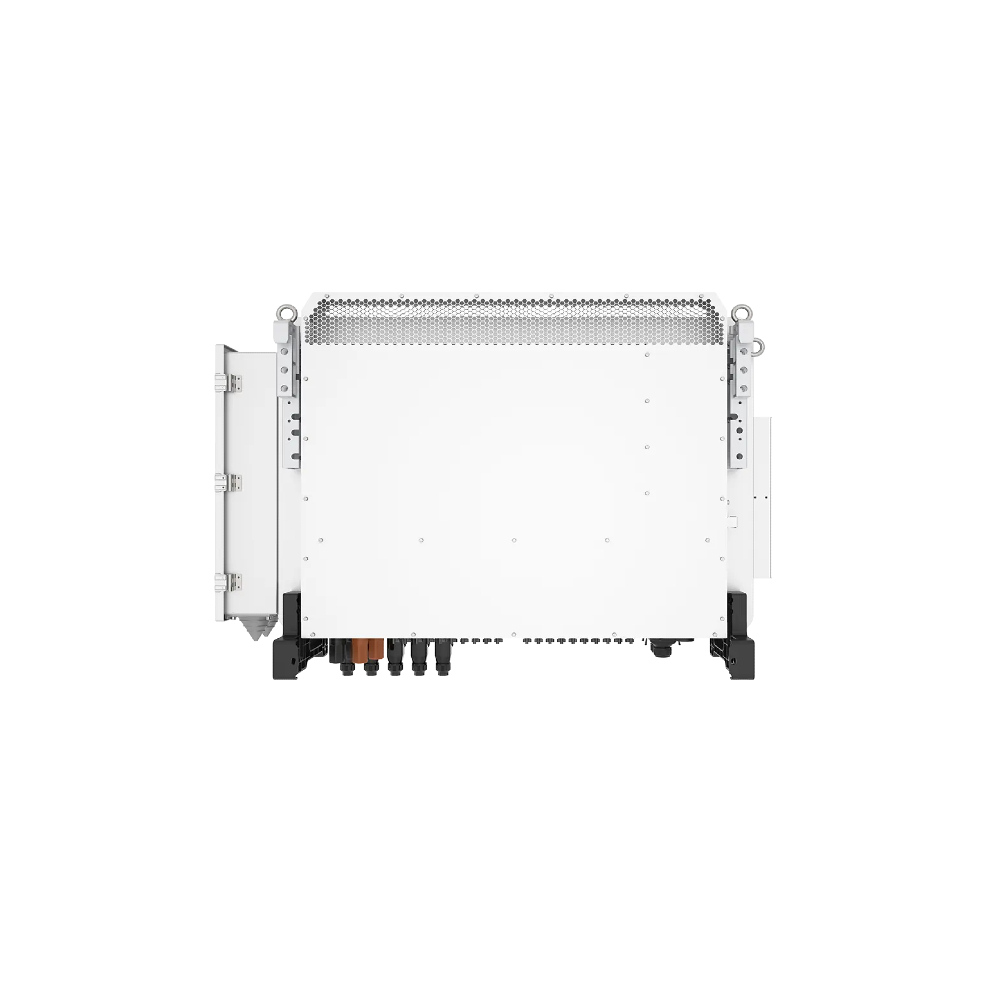

The S6-EH3P(80-125)K10-NV-YD-H is a high-voltage three-phase hybrid inverter designed for commercial and industrial applications, integrating solar generation, battery storage, and grid/generator support.
Model :
S6-EH3P(80-125)K10-NV-YD-HType :
Hybrid solar inverterMax. Output Power :
125KWAC Output Voltage :
380/400VBattery Voltage Range :
300-950VWarranty :
5 YearsCertificate :
VDE/IEC
Leading Features
• Supports PV input up to 200% of the inverter's rated DC power, maximising solar utilisation
• Supports up to 21A PV input current, compatible with the latest high-power PV modules
• Compatible with 100-314Ah battery cells, helping reduce energy storage system costs
• Supports battery charge/discharge current up to 200A, ideal for peak-valley arbitrage and frequency regulation applications
• Two independent battery connections, allowing more flexible system configuration
• AI-Powered & VPP-Ready - maximise savings, unlock additional income
• 7-inch industrial-grade screen, providing a larger, user-friendly interface for local operation
• Supports DC and AC coupling for PV, allowing flexible system expansion and retrofitting
• Smart port enables multiple energy source inputs, including grid-tied inverters, diesel generators, and wind turbines
• Supports up to 10 units in parallel. For systems with more than 6 units, use of a Solis power distribution cabinet is recommended
| Models | 80K | 100K | 125K |
| Input DC (PV side) | |||
| Recommended max. PV array size | 160 kW | 200 kW | 250 kW |
| Max. usable PV input power | 160 kW | 200 kW | 250 kW |
| Max. input voltage | 1000 V | ||
| Rated voltage | 600 V | ||
| Start-up voltage | 180 V | ||
| MPPT voltage range | 150 - 950 V | ||
| Max. input current | 10 × 42 A | ||
| Max. short circuit current | 10 × 60 A | ||
| MPPT number / Max. input strings number | 10 / 20 | ||
| Battery | |||
| Battery type | Li-ion | ||
| Battery voltage range | 300 - 950 V | ||
| Max. charge / discharge current | 200 A / 100 A + 100 A | ||
| Number of battery ports | 2 | ||
| Max. charge / discharge current of each port | 100 A | ||
| Communication | CAN / RS485 | ||
| Output AC (Grid side) | |||
| Rated output power | 80 kW | 100 kW | 125 kW |
| Max. apparent output power | 80 kVA | 100 kVA | 125 kVA |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | ||
| Rated grid frequency | 50 Hz / 60 Hz | ||
| Rated grid output current | 121.6 A / 115.5 A | 152 A / 144.3 A | 189.9 A / 180.4 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | ||
| THDi | < 3% | ||
| Input AC (Grid side) | |||
| Max. input current | 250 A | ||
| Output AC (Back-up) | |||
| Rated output power | 80 kW | 100 kW | 125 kW |
| Max. apparent output power | 1.2 times of rated power, 10 mins; 1.4 times of rated power, 100 s; 1.6 times of rated power, 10 s; 2 times of rated power, 200 ms |
1.2 times of rated power, 100 s; 1.4 times of rated power, 10 s; 1.6 times of rated power, 200 ms |
|
| Back-up switch time | < 10 ms | ||
| Rated output voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | ||
| Rated frequency | 50 Hz / 60 Hz | ||
| THDv (@linear load) | < 2% | ||
| Input AC (Generator) | |||
| Max. input power | 80 kW | 100 kW | 125 kW |
| Rated input current | 121.6 A / 115.5 A | 151.9 A / 144.3 A | 189.9 A / 180.4 A |
| Rated input voltage | 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V | ||
| Rated input frequency | 50 Hz / 60 Hz | ||
| Efficiency | |||
| Max. efficiency | 97.6% | ||
| EU efficiency | 97.2% | ||
| BAT charged / discharged to AC max. efficiency | 97.0% | ||
| Protection | |||
| Anti-islanding protection | Yes | ||
| Output over current protection | Yes | ||
| Short circuit protection | Yes | ||
| Integrated DC switch | Yes | ||
| DC reverse-polarity protection | Yes | ||
| Surge protection | DC Type II / AC Type II | ||
| Integrated AFCI 2.0 | Optional | ||
| Protection class / Over voltage category | I/ DC II, AC III | ||
| General Data | |||
| Max. allowable phase imbalance (grid & back-up) | 100% | ||
| Max. power per phase (grid & back-up) | 26.66 kW | 33.33 kW | 41.66 kW |
| Dimensions (W × H × D) | 1174 × 814 × 400 mm | ||
| Weight | 170 kg | ||
| Topology | Transformerless | ||
| Operating ambient temperature range | -25 ~ +60°C | ||
| Relative humidity | 0 - 100% | ||
| Ingress protection | IP66 | ||
| Cooling concept | Intelligent fan-cooling | ||
| Max. operation altitude | 3000 m | ||
| Grid connection standard | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/ UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022 |
||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 | ||
| Features | |||

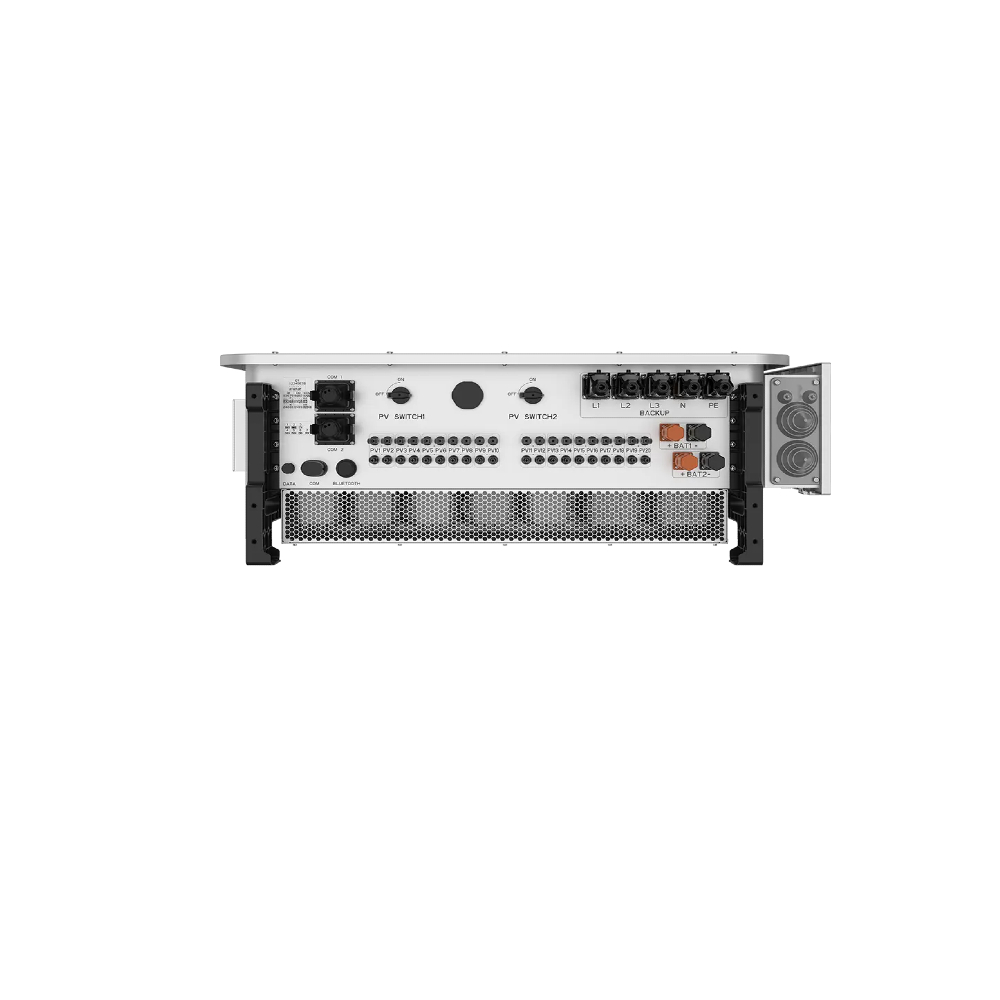

| PV connection | MC4 Quick connection plug | ||
| Battery connection | Terminal connector | ||
| AC connection | Terminal block | ||
| Display | 7.0" LCD display & Bluetooth + APP | ||
| Communication | CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN | ||
