Grid tied Solar System Three Phase 40KW 50KW 60KW For Commercial

System Diagram

The grid-tied system efficiently harnesses renewable energy, slashing electricity costs through grid synchronization and surplus energy export. It ensures reliable, scalable power with smart monitoring, supports grid stability, and promotes sustainable energy use.

1. High Energy Conversion Efficiency – Advanced inverters maximize power output by synchronizing with the grid’s frequency and voltage, ensuring minimal energy loss.
2. Reduced Electricity Costs – Users offset grid consumption with self-generated renewable energy, lowering bills and enabling earnings via surplus power fed back to the grid.
3. Smart Grid Interaction – Real-time monitoring and automated adjustments optimize energy flow, maintain grid stability, and ensure compliance with utility regulations.
4. Enhanced Reliability – The system operates as a backup during grid outages (if paired with hybrid inverters or batteries) while prioritizing renewable energy usage.
5. Scalability & Sustainability – Easily expandable design supports future upgrades and significantly reduces carbon footprint by displacing fossil fuel-based grid power.

System Configuration

 System Components

High Efficiency PV Module

* Max Power: 600W-750W

* Technology: TOPCon/HJT/Bifacial

* Low temperature coefficient

* Upto 24% Efficiency

* Low BOS cost & LCOE

* Warranty: 30 Years

* Full Certification

Smart Commericial Grid Tie Inverter

* Dual MPP trackers
* Max. efficiency up to 98.75%
* Type II SPD on DC and AC sides
* AFCI function optional
* Intelligent string monitoring
* Online smart service

DC Cable & MC4 Connector

* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
* Lifetime:30 Years

PV Mounting System

* Mounting Type: Tile Roof, Tin Roof, Flat Roof, Ground

* Metarial: Aluminum alloy, hot dip galvanized steel

* Wind Speed: 80M/S

PV Combiner Box

* IP Rating: IP66
* Rated Voltage: 1000VDC
* Connection Type: M20,M25,MC4
* Rated Current: 16A,20A

Online Monitoring System

* Open station supports one-click installation and registration

* Problem support one-click dispatch and navigation

* Support full lifecycle data storage to ensure data security and reliability

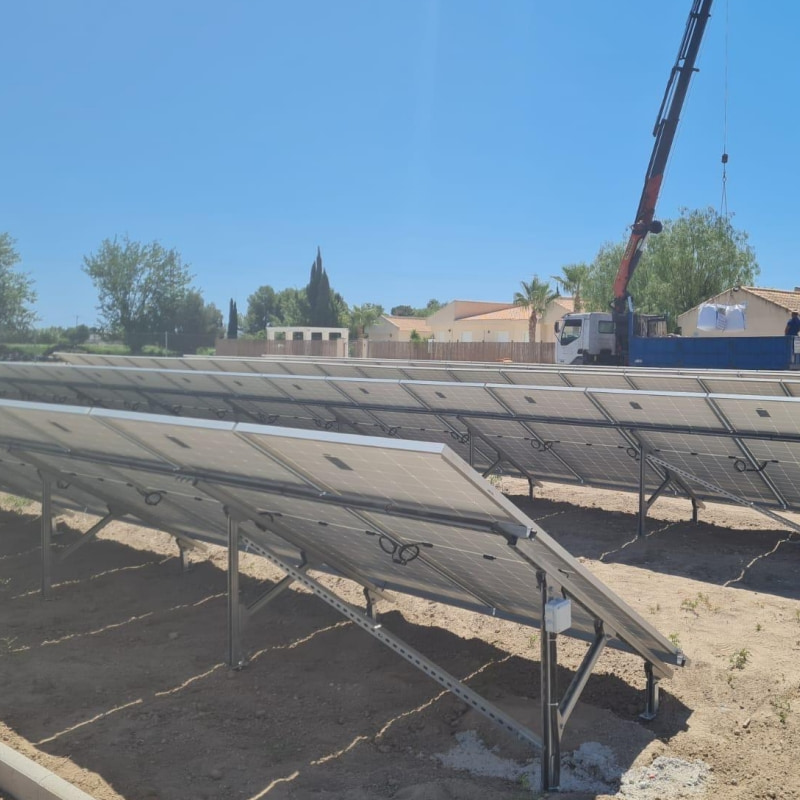

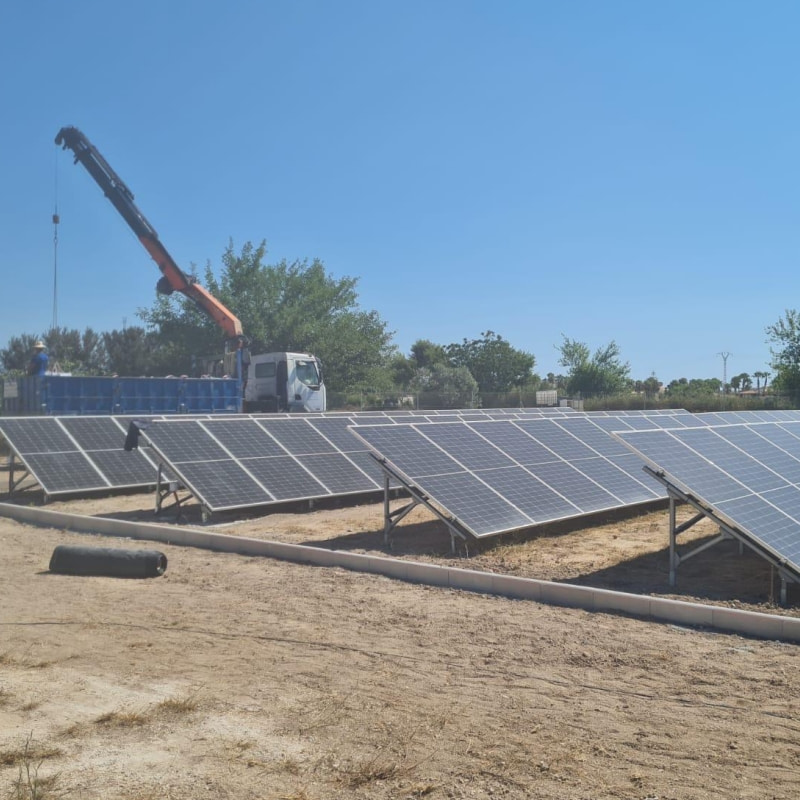

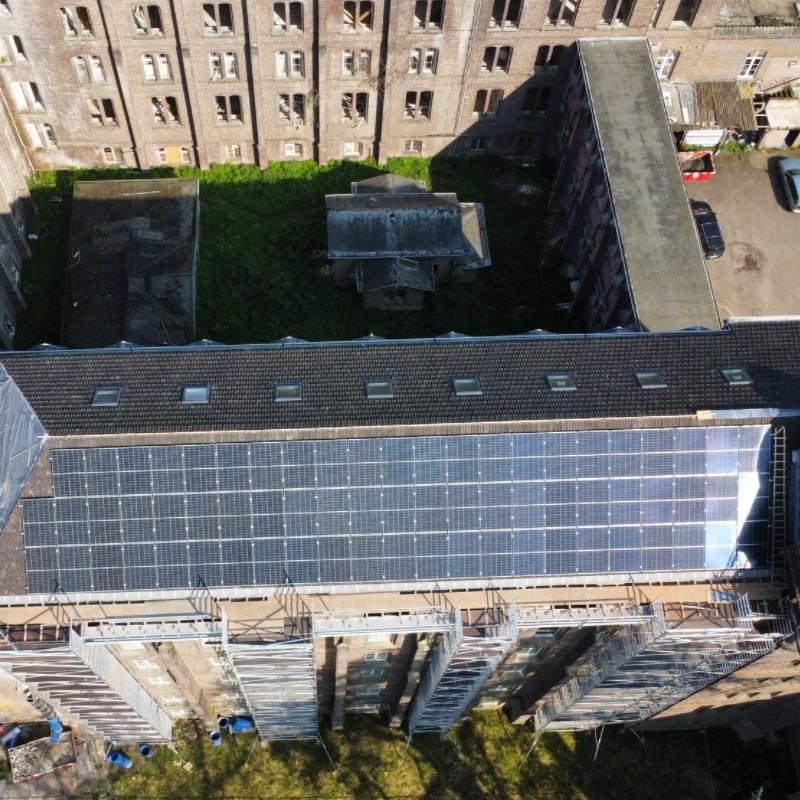

Project
