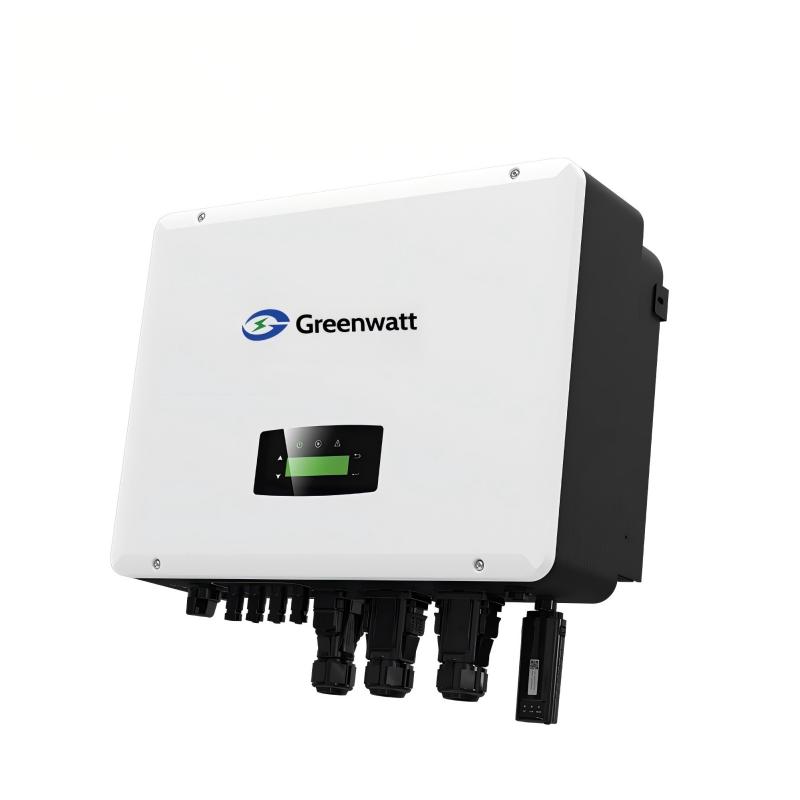

The GW15-30K-TH is a high-voltage three-phase hybrid inverter designed for residential applications, integrating solar generation, battery storage, and grid/generator support.
Model :
GW30K-THType :
Hybrid solar inverterMax. Output Power :
30KWAC Output Voltage :
380/400VBattery Voltage Range :
150-800VWarranty :
5 YearsCertificate :
VDE/IEC
Leading Features

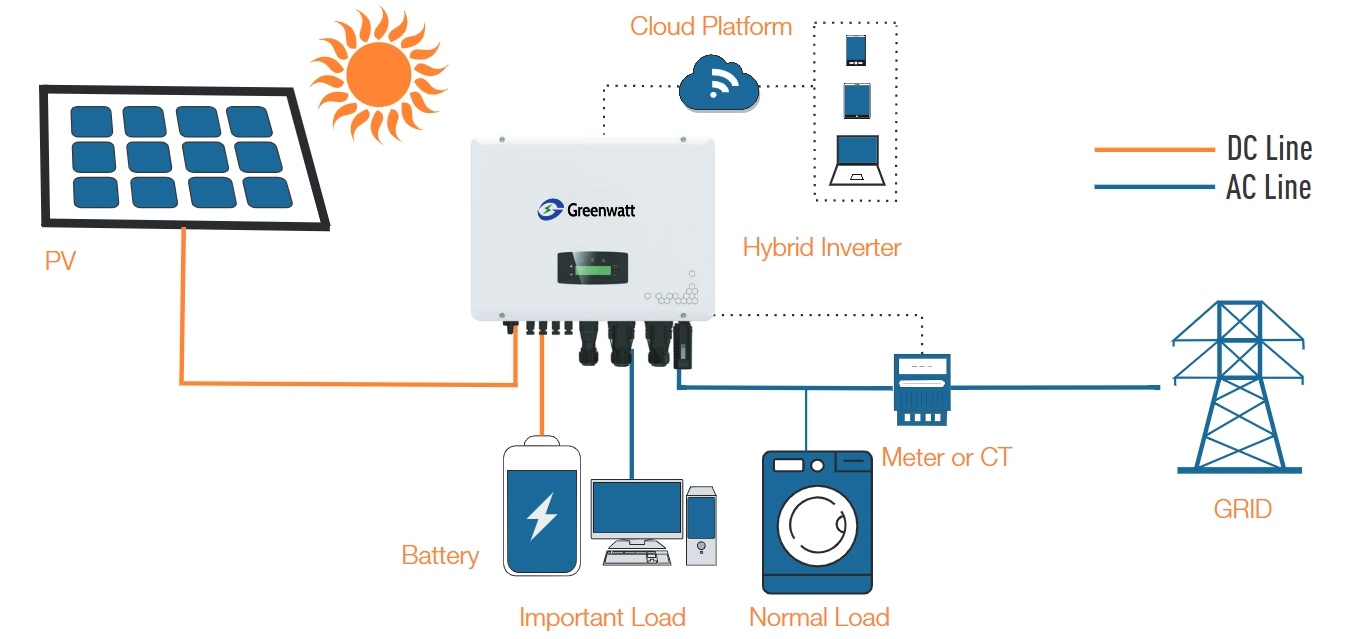

Product Diagram
| Model | GW20K-TH | GW30K-TH | |
| Max. DC Input Power (kW) | 30 | 45 | |
| PV Input | Max. PV Voltage (V) | 1000 | |
| Rated DC Input Voltage (V) | 620 | ||
| DC Input Voltage Range (V) | 150-1000 | ||
| MPPT Voltage Range (V) | 150-850 | ||
| Full MPPT Range(V) | 500-850 | ||
| Start-up Voltage (V) | 160 | ||
| Max. DC Input Current (A) | 32x2 | 40x2 | |
| Max. Short Current(A) | 48x2 | 60x2 | |
| No. of MPPT Tracker / Strings | 2/4 | ||
| Battery Port | Battery Nominal Voltage (V) | 500 | 550 |
| Battery Voltage Range (V) | 150-800 | ||
| Max. Charge/Discharge Current (A) | 50 | 60 | |
| Max. Charge/Discharge Power (W) | 20K | 30K | |
| Charging Curve | 3 Stages | ||
| Compatible Battery Type | Li-ion / Lead-acid | ||
| AC Grid Output | Nominal AC Output Power (VA) | 20000 | 30000 |
| Max. AC Input Power | 30000 | 45000 | |
| Max. AC Output Current (A) | 32 | 48 | |
| Nominal AC Voltage (V) | 230/400 | ||
| Nominal AC Frenquency (Hz) | 50/60 | ||
| Power Factor | 1（-0.8-0.8） | ||
| Current THD (%) | <3% | ||
| AC Load Output (Back-up) |
Nominal Output Power (VA) | 20000 | 30000 |
| Nominal Output Voltage (V) | 230/400 | ||
| Nominal Output Frequency (Hz) | 50/60 | ||
| Nominal Output Current (A) | 29 | 43.5 | |
| Peak Output Power | 22000VA, 60s | 33000VA, 60s | |
| THDV (with linear load) | <3% | ||
| Switching Time (ms) | <10 | ||
| Efficiency | Europe Efficiency | 97.80% | 98.10% |
| Max. Efficiency | 98.30% | 98.50% | |
| Battery Charge/Discharge Efficiency | 98.00% | ||
| MPPT Efficiency | 99.90% | ||
| Protection | Reverse Polarity Protection | Yes | |
| Over Current / Voltage Protection | Yes | ||
| Anti-islanding Protection | Yes | ||
| AC Short-ciruit Protection | Yes | ||
| Leakage Current Detection | Yes | ||
| Ground Fault Monitoring | Yes | ||
| Grid Monitoring | Yes | ||
| Enclosure Protect Level | IP65 | ||
| General Data | Dimensions (H x W x D) (mm) | 558 x 535 x 260 mm | |
| Weight (kg) | 29kg | 36kg | |
| Topology | Transformerless | ||
| Cooling Concept | IntelligentFan | ||
| Relatively Humidity | 0-100% | ||
| Operating Temperature Range (°C) | -25 to 60°C | ||
| Operating Altitude (m) | <4000 | ||
| Noise Emission (dB) | <40 | ||
| Standby Consumption (W) | <5 | ||
| Display & Communication Interfaces | LCD, LED,RS485,CAN,Wi-Fi,GPRS,4G | ||
