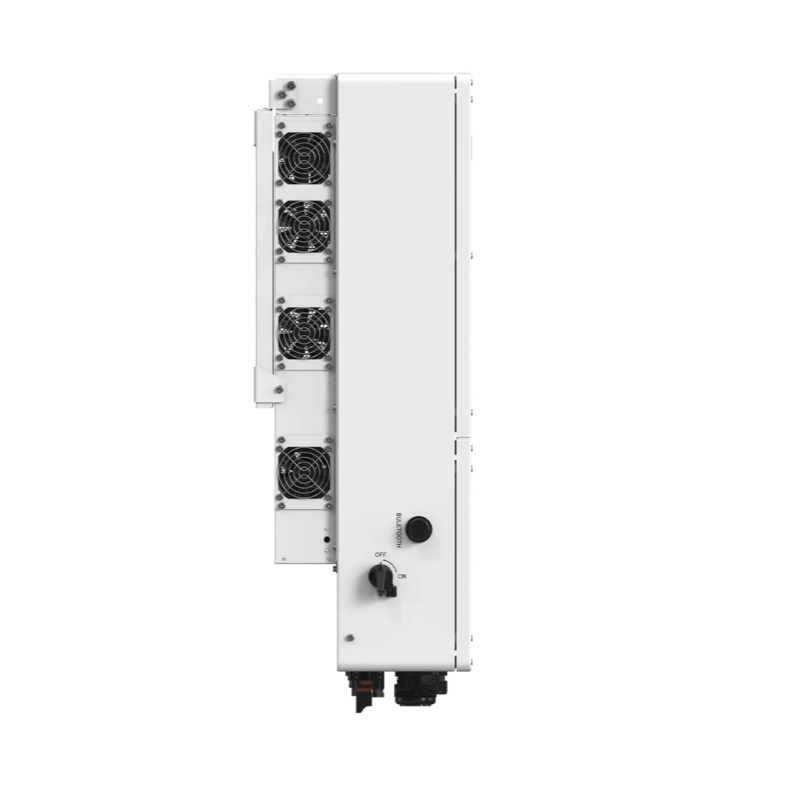

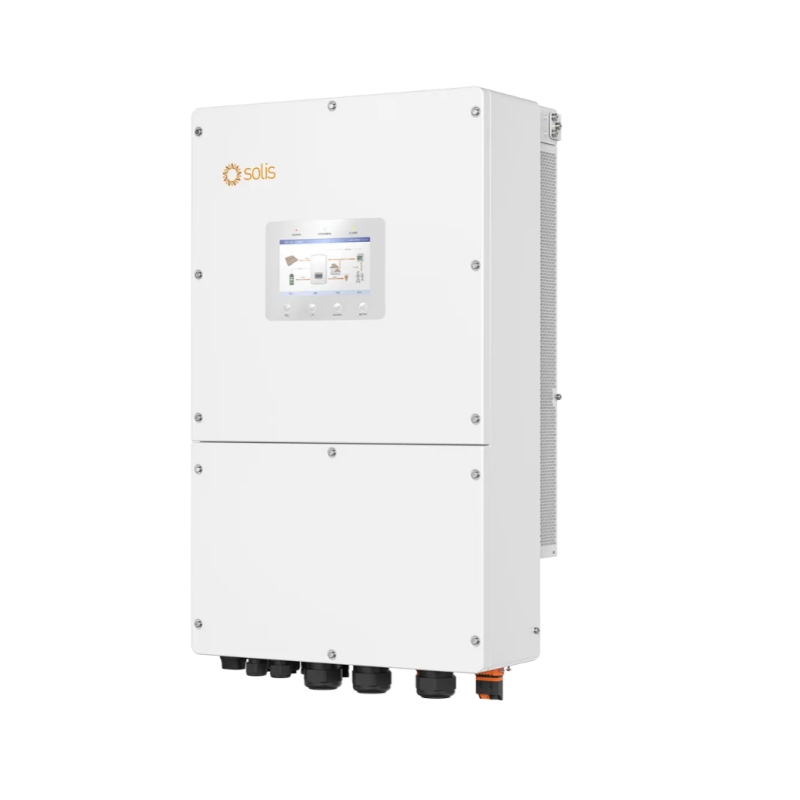

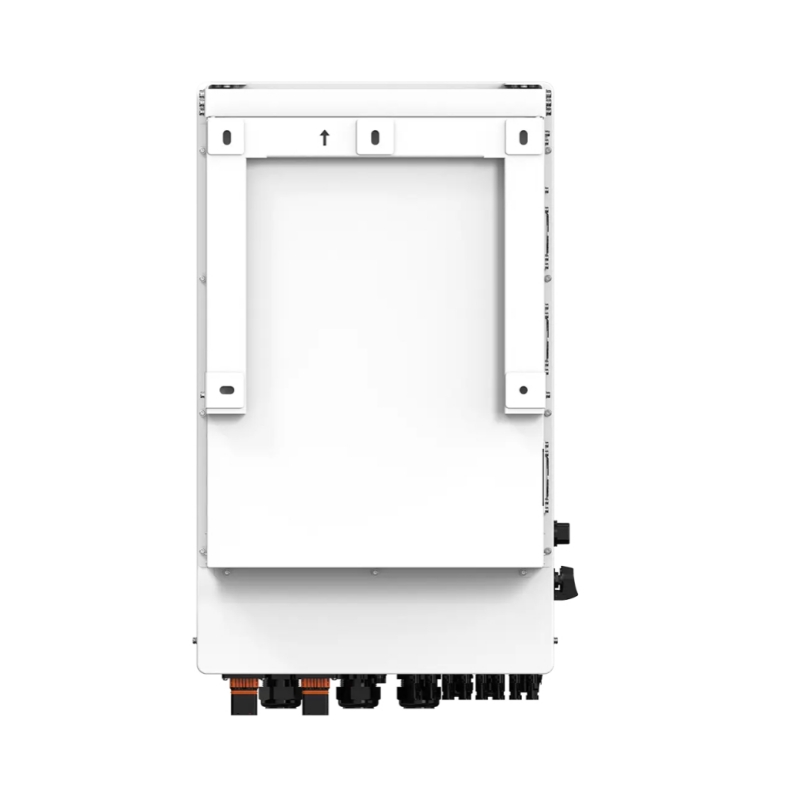

The Solis S6-EH3P50K-H is a high-voltage three-phase hybrid inverter designed for commercial and industrial applications, integrating solar generation, battery storage, and grid/generator support.
Model :
S6-EH3P50K-HType :
Hybrid solar inverterMax. Output Power :
50KWAC Output Voltage :
380/400VBattery Voltage Range :
150-800VWarranty :
5 YearsCertificate :
VDE/IEC
Leading Features
| INPUT DC(PV side) | ||||||
| Max. usable PV input power | 96 kW | |||||
| Max. input voltage | 1000 V | |||||
| Rated voltage | 600 V | |||||
| Start-up voltage | 180 V | |||||
| MPPT voltage range | 150-850V | |||||
| Max. input current | 4*40 A | |||||
| Max. short circuit current | 4*60 A | |||||
| MPPT number/Max. input strings number | 4*8 | |||||
| Battery | ||||||
| Battery type | Li-ion | |||||
| Battery voltage type | 150-800V | |||||
| Max. charge / discharge power | 55 kW | |||||
| Max. charge / discharge current | 70 A*2 | |||||
| No. of battery inputs | 2 | |||||
| Max. charge / discharge power of each input | 40 kW | |||||
| Communication | CAN/RS485 | |||||
| Output AC (Grid side) | ||||||
| Rated output power | 50 kW | |||||
| Max. apparent output power | 50 kVA | |||||
| Rated grid voltage | 3/N/PE, 220 V / 380 V 3/N/PE, 230 V / 400 V | |||||
| Rated grid frequency | 50 Hz / 60 Hz | |||||
| Rated grid output current | 76 A / 72.2 A | |||||
| Max. output current | 76 A / 72.2 A | |||||
| Power factor | ＞0.99(0.8 leading-0.8lagging) | |||||
| THDi | < 3% | |||||
| Input AC (Grid side) | ||||||
| Max. AC passthrough current | 152 A / 144.4 A | |||||
| Rated input voltage | 3/N/PE, 220 V / 380 V 3/N/PE, 230 V / 400 V | |||||
| Rated input frequency | 50 Hz / 60 Hz | |||||
| Input Generator | ||||||
| Max. input power | 50 kW | |||||
| Rated input current | 76 A / 72.2 A | |||||
| Rated input voltage | 3/N/PE, 220 V / 380 V 3/N/PE, 230 V / 400 V | |||||
| Rated input frequency | 50 Hz / 60 Hz | |||||
| Output AC (Back-up) | ||||||
| Rated output power | 50 kW | |||||
| Max. apparent output power | 1.6 times of rated power, 2 s | |||||
| Back-up switch time | < 10 ms | |||||
| Rated output voltage | 3/N/PE, 220 V / 380 V 3/N/PE, 230 V / 400 V | |||||
| Rated frequency | 50 Hz / 60 Hz | |||||
| Rated output current | 76A / 72.2 A | |||||
| THDv (@linear load)efficiency | < 2% | |||||
| Max. efficiency | 97.8% | |||||
| EU efficiency | 97.4% | |||||
| BAT charged by PV Max. efficiency | 98.5% | |||||
| BAT charged/discharged to AC Max. efficiency | 97.5% | |||||
