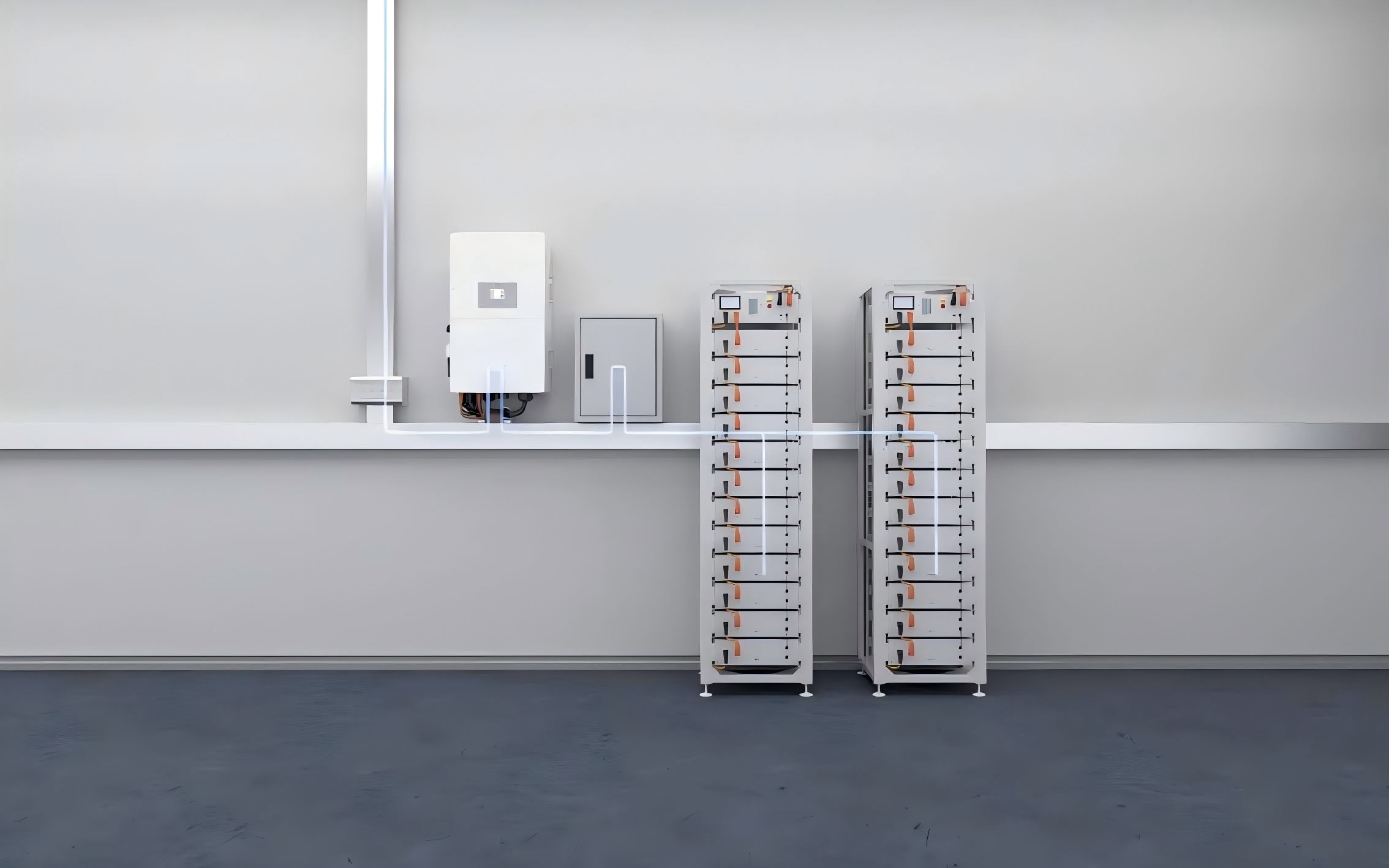

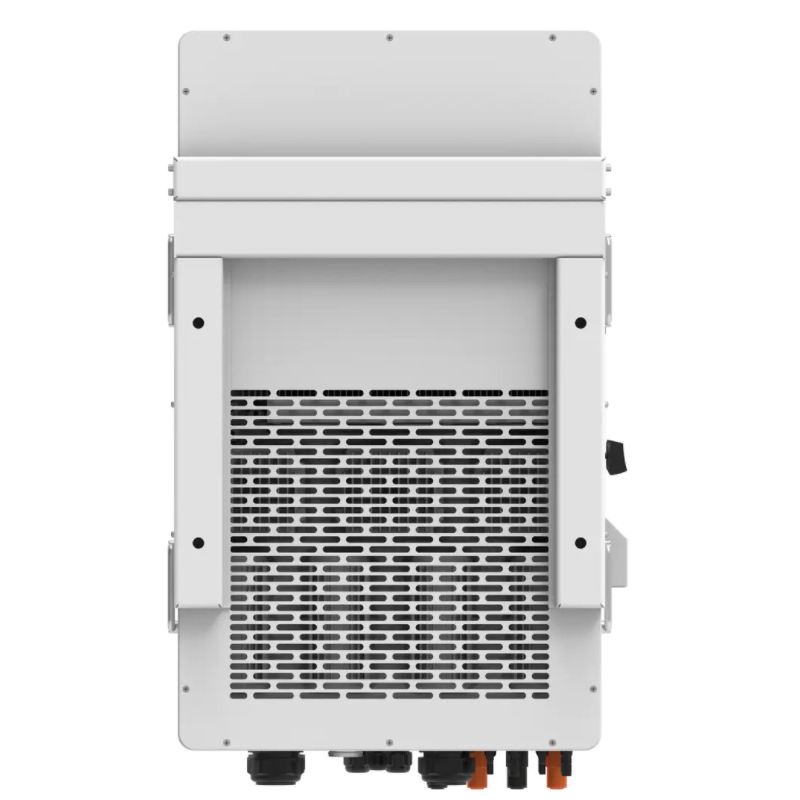

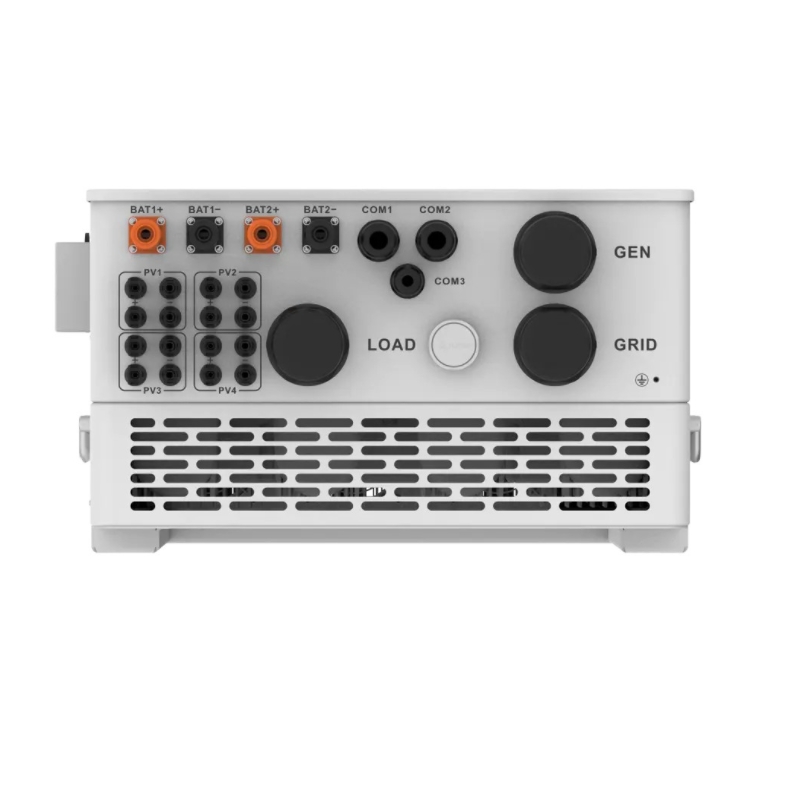

The SUN-50K-SG01HP3-EU-BM4 is a high-voltage three-phase hybrid inverter designed for commercial and industrial applications, integrating solar generation, battery storage, and grid/generator support.
Model :
SUN-50K-SG01HP3-EU-BM4Type :
Hybrid solar inverterMax. Output Power :
50KWAC Output Voltage :
380/400VBattery Voltage Range :
160-800VWarranty :
5 YearsCertificate :
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Leading Features
| ModeI | SUN-29.9K-SG01HP3 -EU-BM3 |
SUN-30K-SG01HP3 -EU-BM3 |
SUN-35K-SG01HP3 -EU-BM3 |
SUN-40K-SG01HP3 -EU-BM4 |
SUN-50K-SG01HP3 -EU-BM4 |
| Battery Input Data | |||||
| Battery Type | Lithium-ion | ||||
| Battery Voltage Range (V) | 160-800 | ||||
| Max. Charging Current (A) | 50+50 | ||||
| Max. Discharging Current (A) | 50+50 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of Battery Input | 2 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 59800 | 60000 | 70000 | 80000 | 100000 |
| Max. PV Input Power (W) | 47840 | 48000 | 56000 | 64000 | 80000 |
| Max. PV Input Voltage (V) | 1000 | ||||
| Start-upVoltage (V) | 180 | ||||
| MPPT Voltage Range (V) | 150-850 | ||||
| Rated PV Input Voltage (V) | 600 | ||||
| Max. Operating PV Input Current (A) | 36+36+36 | 36+36+36+36 | |||
| Max. Input Short-Circuit Current (A) | 55+55+55 | 55+55+55+55 | |||
| No. of MPP Trackers/ No. of Strings MPP Tracker |
3/2+2+2 | 4/2+2+2+2 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power (W) | 29900 | 30000 | 35000 | 40000 | 50000 |
| Max. AC Input/Output Apparent Power (VA) | 29900 | 33000 | 38500 | 44000 | 55000 |
| Rated AC Input/Output Current (A) | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58 | 75.8/72.5 |
| Max. AC Input/Output Current (A) | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 |
| Max. Continuous AC Passthrough (grid to load) (A) | 200 | ||||
| Peak Power (off-grid) (W) | 1.5 times of rated power, 10s | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5% In | ||||
| Efficiency | |||||
| Max. Efficiency | 97.60% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPT Efficiency | >99% | ||||
| Equipment Protection | |||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| lnterface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| GeneraI Data | |||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise (dB) | ≤65 | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||||
| Cabinet Size (WxHxD mm) | 527×894×294 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 80 | ||||
| Typeof Cooling | Intelligent Air Cooling | ||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
