The cabinet is suitable for industrial parks and commercial complexes.The integrated cabinet adopts modular design,which can be flexibly expanded, and is convenient for installation , operation and maintenance. Explosion-proof design of the whole machine, aerosol fire protection system.
Model :
FH233Type :
Hybrid Solar SystemMax. Output Power :
100KWAC Output Voltage :
380/400VWarranty :
10 YearsCertificate :
CETechnical Data
| Model | FH233 | |||||
| System parameters | ||||||
| Rated output power(KW) | 100 | |||||
| AC output frequency/voltage | 50/60Hz,380/400Vac | |||||
| Grid type | Three-phase, five-wire | |||||
| Capacity(kwh) | 233 | |||||
| Dimension(mm) | 1100*1400*2380 | |||||
| Weigt(kg) | ≤ 3000 | |||||
| Battery operating voltage(V) | 650~949 | |||||
| Maximum cycle efficiency | 92% | |||||
| Communication | ETH/4G | |||||
| Ambient temperature(℃) | -20~55 | |||||
| Operating altitude(m) | ≤ 2000 | |||||
| IP | IP55 | |||||
| Corrosion protection level | C4 | |||||
| Installation | Floor mounted | |||||
| Coverter parameters | ||||||
| Rated output current(A) | 144 | |||||
| Maxinum output current(A) | 192 | |||||
| Maxinum number of parallel machines | 8 | |||||
| Peak power | 1.1(long-term), 1.2(1min) | |||||
| Power factor | -0.99~+0.99 | |||||
| Current harmonics | ≤ 3% | |||||
| Operating temperature(℃) | -20~50(＞45 ℃ Down clocking | |||||
| Operating humidity | 0%~95%(No Condensing) | |||||
| Communication | CAN, RS485, LAN | |||||
| Maximum efficiency | ≥98.2% | |||||
| Battery technical parameters | ||||||
| Cell type | LFP 3.2V280Ah | |||||
| Standard voltage(V) | 166.4 | |||||
| Capacity(kwh) | 46.6 | |||||
| Communication | CAN | |||||
| Dimension(mm) | 784*1160*242 | |||||
| Weigt(kg) | 323 | |||||
| Operating temperature | Charge:0~55℃/Dischaege :-20~55℃ | |||||
| Cyele life | ≥6000 (@25℃2℃ , 0.5C/0.5C,70% EOL) | |||||
Application
Electricity bill savings.
Peak shaving and valley filling to reduce electricity bills Demand control reduces capacity electricity bills

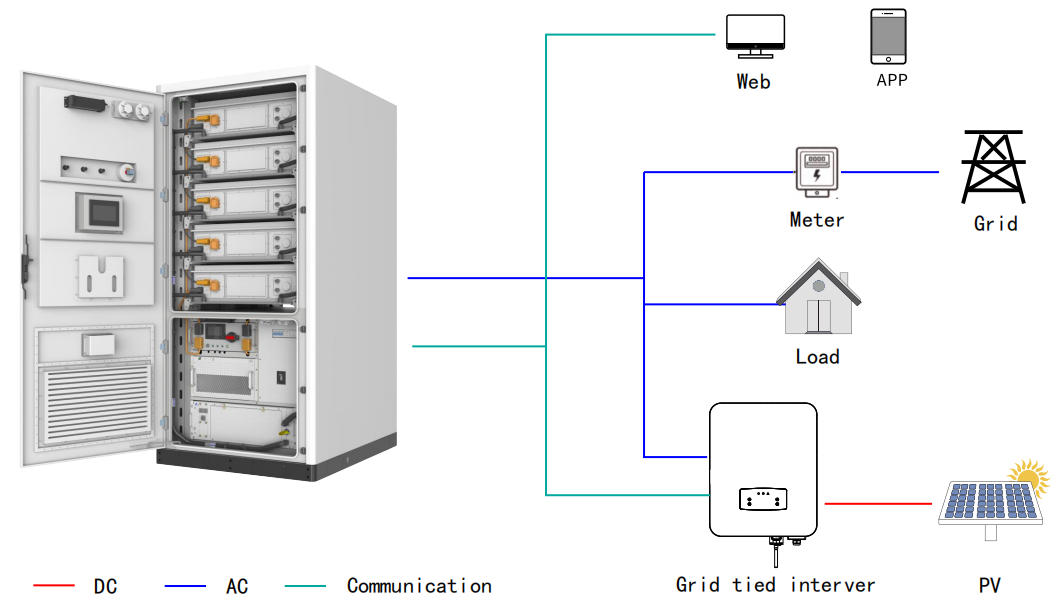

Scenery consumption
The surplus electricity generated by PV during the day is stored for use at night. The discharge smooths out the output fluctuations of wind power
Optical storage microgrid
It can realize the application of electricity cost saving,back up power supply,etc.,and provide stable power supply for areas that cannot be connected to the power grid such as islands and mountainous areas.
Power expansion
Discharges when the distribution capacity cannot meet the load demand to meet the load demand, so as to achieve the effect of virtual capacity expansion
The standby power supply
Discharged in the event of a power outage or power rationing in the power grid to ensure power consumption
Demand response
Receive grid dispatch and enjoy dispatch subsidies
