Greenwatt 1MW 2MWh 40FT Container Energy Storage System ESS

Greenwatt 1MW 2MWh 40FT Container Energy Storage System ESS

A high-performance, all-in-one, containerized battery energy storage system , provides C&I users with the intelligent and reliable solution to optimize energy efficiency and resilience. BESS related products are useful for a wide range of applications which covers commercial & industrial,renewable energy and grid services.
  • Model :

    GW40FT1MW-2MW
  • Type :

    Hybrid Type
  • Max. Output Power :

    1MW
  • AC Output Voltage :

    380V/400V, 50/60Hz
  • Warranty :

    10 Years
  • Certificate :

    CE/ISO

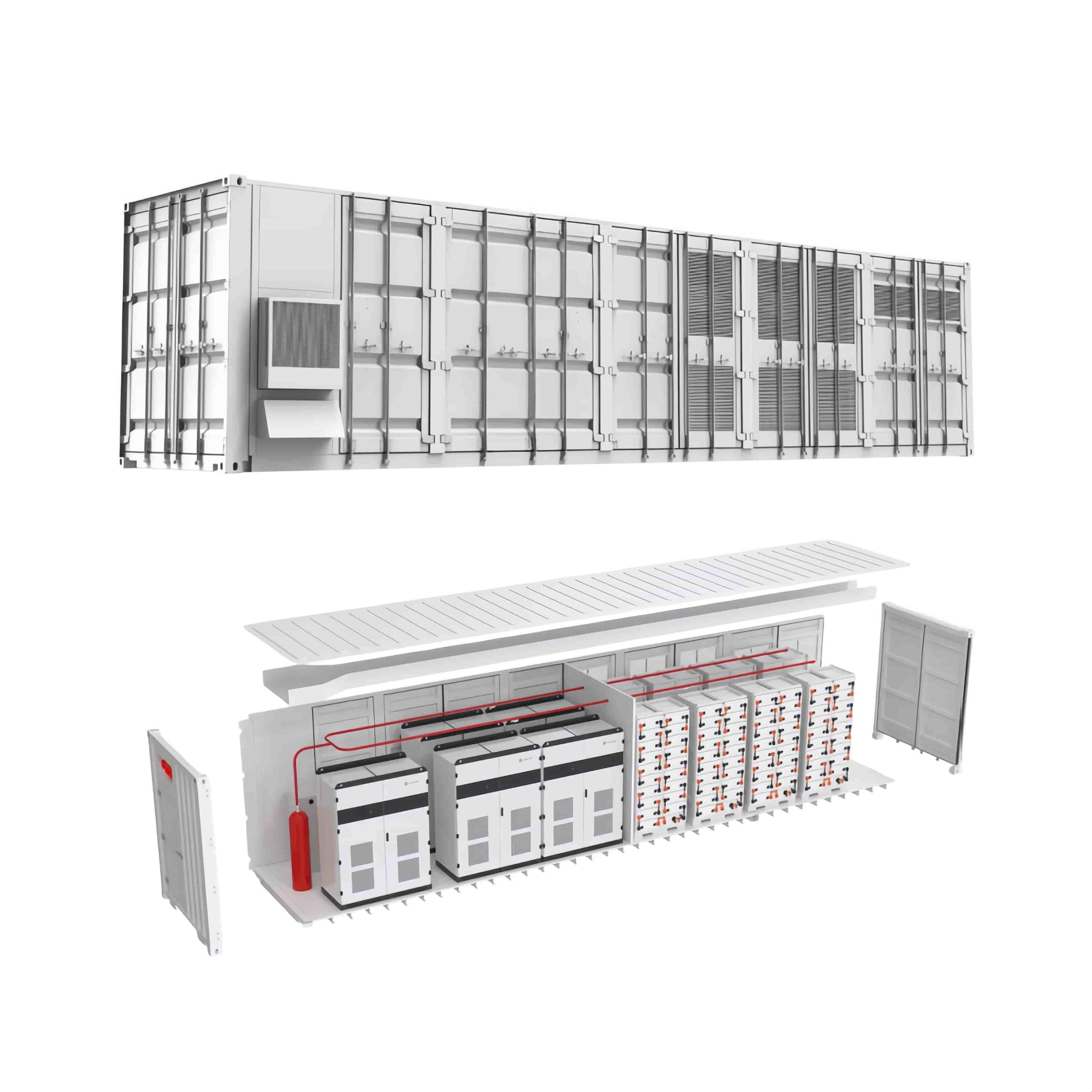

Our pre-integrated, plug-and-play solution combines high-energy density lithium-ion batteries with advanced power conversion and smart controls in a customized 40Hq shipping container. Designed for rapid deployment, it offers scalable capacity (up to XX MWh per unit) and seamless grid/renewables integration, featuring 95%+ round-trip efficiency. The modular design enables flexible configurations for peak shaving, emergency backup, or microgrid applications while reducing installation time/costs by 40% versus traditional setups. IP65-rated and thermal-managed for harsh environments, it guarantees 6,500+ cycles with real-time remote monitoring for optimized ROI in commercial/utility-scale energy management.



Features

  • LiFePO4 battery module, stable discharge platform, good safety performance, long cycle life;
  • Three-level battery management system, support overcharge,over-discharge, over-voltage and other functional protection;
  • Modular design, support elastic expansion and front maintenance;
  • Comes with local monitoring EMS, which can remotely view system information;
  • Optional with EMS (Customized microgrid energy management system, including energy storage, photovoltaic, grid, load,generator, video monitoring, etc.

1MW ESS



System Parameter

MODEL GW40FT1MW-2MWH
DC Data
Cell type Prismatic LFP
Cell brand REPT
Celle life cycle >6,500 cycles@0.5C,25°C
Cell spec 3.2V/314Ah
String configuration 1P224S
Number of strings 10
String rated energy capacity 224kWh
DC rated energy capacity 2.24MWH
Rated AC voltage 716V
Vokage range 627.2V~795.2V
BMS communication interface Ethernet, CAN, RS485
BMS communication protocol Modbus RTU, Modbus TCP
AC Data
Rated AC power 2*500kW
Maximum AC power 2*550kW
Rated AC vokage 400V
AC PF 1 leading ~ 1 lagging
Output THDi ≤3%
Nominal grid frequency 50/60Hz
Isolation method 3 Phase 4 Line Transformer
General Data
Dimension w/o clearances (L*W*H) 12,116*2,438*2, 896mm
Weight of whole system <50MT
Degree of protection IP65
Operating temperature range -20~65°C
Relative humidity 0~95% (non-condensing)
Max working altitude 3,000m/9,842ft
Cooling concept of DC hatch HAVC
Cooling concept of PCS hatch Forced air cooling
Fire extinguisher system HFC bottle group
Communication interfaces RS485, Ethernet, GPRS
Communication protocols Modbus RTU, Modbus TCP
* In case of changes in product dimensions and parameters, the latest information from our company shall prevail without prior notice.



Application
