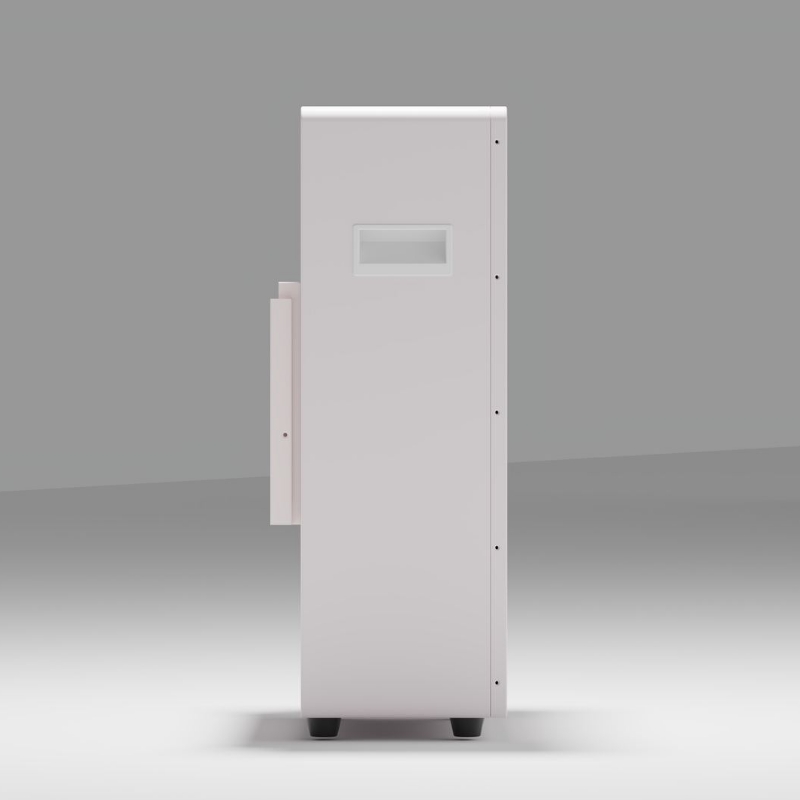

Energy Storage Lithium Battery 51.2V 314Ah 16Kwh In Off-Grid Hybrid System
51.2V 314Ah LiFePO4 Energy Storage Battery redefines low-voltage energy storage with top grade safety and intelligent adaptability. Engineered for global off-grid and hybrid systems, our lithium batteries deliver 6,500+ cycles at 80% depth of discharge – outperforming competitors by 10% lifespan while being 40% lighter than traditional lead-acid alternatives. The built-in smart thermal management ensure zero thermal runaway risks, even in extreme environments (-20°C to 60°C).
Model :
GWB51.2V-314AHType :
Low VoltageVoltage :
51.2VMutil Module Connection :
In ParallelCycle Time :
＞6500Warranty :
10 yearsCertificate :
ISO/CESeamlessly monitor your energy flow via the App, with real-time alerts for optimal performance. Whether scaling from 5kWh to 256kWh modular capacity or integrating with solar/wind systems, GREENWATT IP20-rated waterproof design and UN38.3 compliance guarantee reliability across continents. Trusted by 300+ commercial installations from Scandinavian microgrids to Southeast Asian resorts, we empower energy independence without compromise.
• High Safety - Utilizes stable LiFePO4 chemistry with built-in BMS for overcharge/discharge protection
• Long Cycle Life - 6500+ cycles at 80% DoD (3-5x longer than lead-acid battery)
• High Energy Density - Compact 16.1kWh capacity (51.2V×314Ah) with 95%+ efficiency
• Wide Temp Range - Operates from -20°C to 60°C with optional heating/cooling systems
• Modular Design - Supports parallel expansion up to 16 units (256kWh max)
• Smart Monitoring - RS485/CAN communication for real-time SOC and health tracking
Specification
| Model | GRB51.2-314 | ||
| Battery Type | liFePO4(LFP) | ||
| Nominal Voltage (V) | 51.2V | ||
| Nominal Capacity | 314Ah | ||
| Nominal Capacity (KWH) | 16.08KWH | ||
| Discharge Voltage (V) | 43.2V | ||
| Charge Voltage (V) | 58.4V | ||
| Dimension (mm) | 500*233*880mm | ||
| Weight (kg) | 123.5Kg | ||
| MAX Charge/Discharge Current | 150A(Max) | ||
| Communicaiton | RS485/RS232/CAN | ||
| Working Temperature | 0℃~60℃,Charge | ||
| Shelf Temperature | -20℃~60℃ | ||
| Design Life | 15 years+ | ||
| Cycle Life | 6500 Cycles | ||
Compatible Inverter List
Application
51.2V 314Ah LiFePO4 Energy Storage Battery redefines low-voltage energy storage with top grade safety and intelligent adaptability. Engineered for global off-grid and hybrid systems, our lithium batteries deliver 6,500+ cycles at 80% depth of discharge – outperforming competitors by 10% lifespan while being 40% lighter than traditional lead-acid alternatives. The built-in smart thermal management ensure zero thermal runaway risks, even in extreme environments (-20°C to 60°C).
