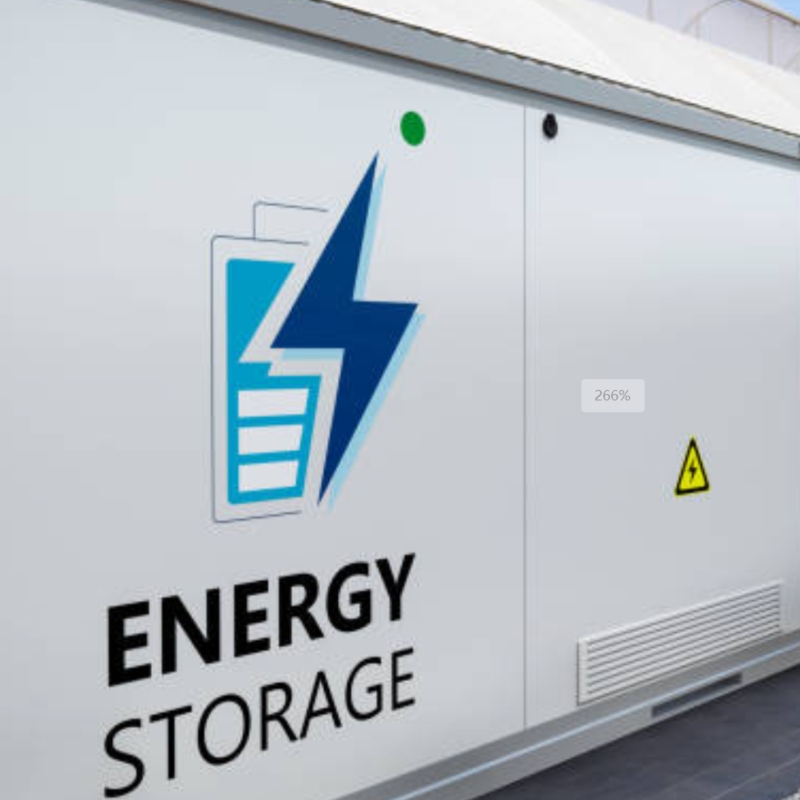

Greenwatt 20FT BESS Container is a powerful energy storage solution featuring battery status monitoring, event logging, dynamic balancing, and advanced protection systems. It also includes automatic fire detection and alarm systems, ensuring safe and efficient energy management.
Model :
GW20FT500K-1MWHType :
Hybrid TypeMax. Output Power :
500KWAC Output Voltage :
380V/400V, 50/60HzWarranty :
10 YearsCertificate :
CE/ISO● Events record and storage function
● Operation control
● Insulation detection
● Dynamic balancing management
● Protection alarms
● CommunicationFire Protection System
Fire Protection System
● Automatic fire detecting
● Control room and local fire alarm device
● Fault alarm for fire detecting and alarming system

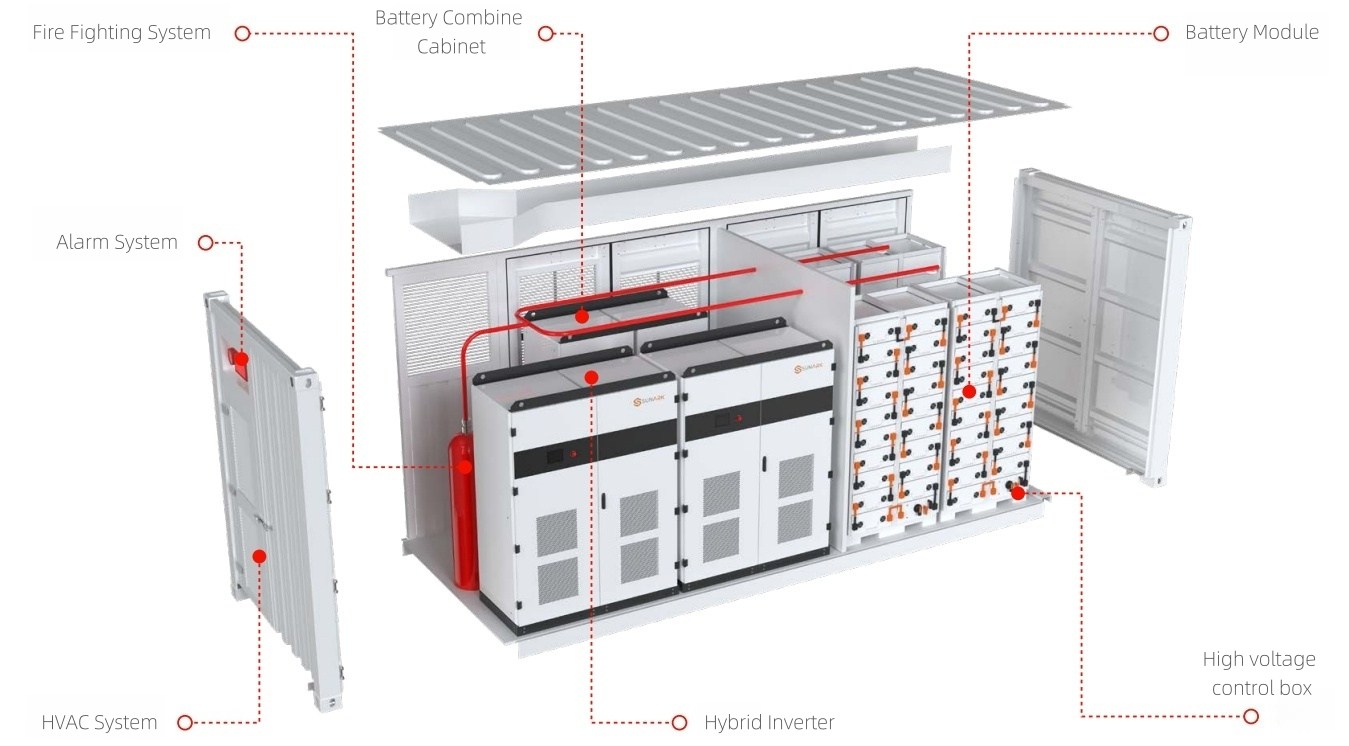

The 20FT Container 500kW 1200Wh Battery Energy Storage System is a highly integrated and powerful solution for efficient energy storage and management. This all-in-one containerized system combines an LFP (LiFePO4) battery, hybrid inverter, isolation transformer, fire suppression, air conditioning, and an intelligent Battery Management System (BMS) in a modular design. With its stackable and expandable architecture, it is easy to scale capacity and maintain.
Safety and reliability are paramount, with maximum protection provided by the robust LFP battery and a three-level BMS for dynamic monitoring, event logging, and balancing. Advanced fire suppression systems, both at the module and container levels, ensure multi-layered protection, while the IP54-rated cabinet guarantees reliable operation in harsh environments. Equipped with automatic fire detection and alarm systems, the 20FT Container 500kW 1200kWh Battery Energy Storage System is the ultimate choice for secure, scalable, and efficient energy storage applications.
Greenwatt has launched 20-foot high-energy-density ESS. The DC side consists of 5 sets 240kWh lithium battery energy units, and the AC side uses MEGA series 500KW MPS, through the EMS operation strategy, interacts with the grid in a friendly way, and provides power support for customers during power limited period.
System Parameter
| MODEL | GW20FT100K-1MWH |
| DC Data | |
| Cell type | Prismatic LFP |
| Cell brand | REPT |
| Celle life cycle | >6,500 cycles@0.5C,25°C |
| Cell spec | 3.2V/314Ah |
| String configuration | 1P224S |
| Number of strings | 5 |
| String rated energy capacity | 240kWh |
| DC rated energy capacity | 1.2MWH |
| Rated AC voltage | 768V |
| Vokage range | 628V~806V |
| BMS communication interface | Ethernet, CAN, RS485 |
| BMS communication protocol | Modbus RTU, Modbus TCP |
| AC Data | |
| Rated AC power | 500kW |
| Maximum AC power | 550kW |
| Rated AC vokage | 400V |
| AC PF | 1 leading ~ 1 lagging |
| Output THDi | ≤3% |
| Nominal grid frequency | 50/60Hz |
| Isolation method | 3 Phase 4 Line Transformer |
| General Data | |
| Dimension w/o clearances (L*W*H) | 6,058*2,438*2, 591mm |
| Weight of whole system | <30MT |
| Degree of protection | IP65 |
| Operating temperature range | -20~65°C |
| Relative humidity | 0~95% (non-condensing) |
| Max working altitude | 3,000m/9,842ft |
| Cooling concept of DC hatch | HAVC |
| Cooling concept of PCS hatch | Forced air cooling |
| Fire extinguisher system | HFC bottle group |
| Communication interfaces | RS485, Ethernet, GPRS |
| Communication protocols | Modbus RTU, Modbus TCP |
| * In case of changes in product dimensions and parameters, the latest information from our company shall prevail without prior notice. | |

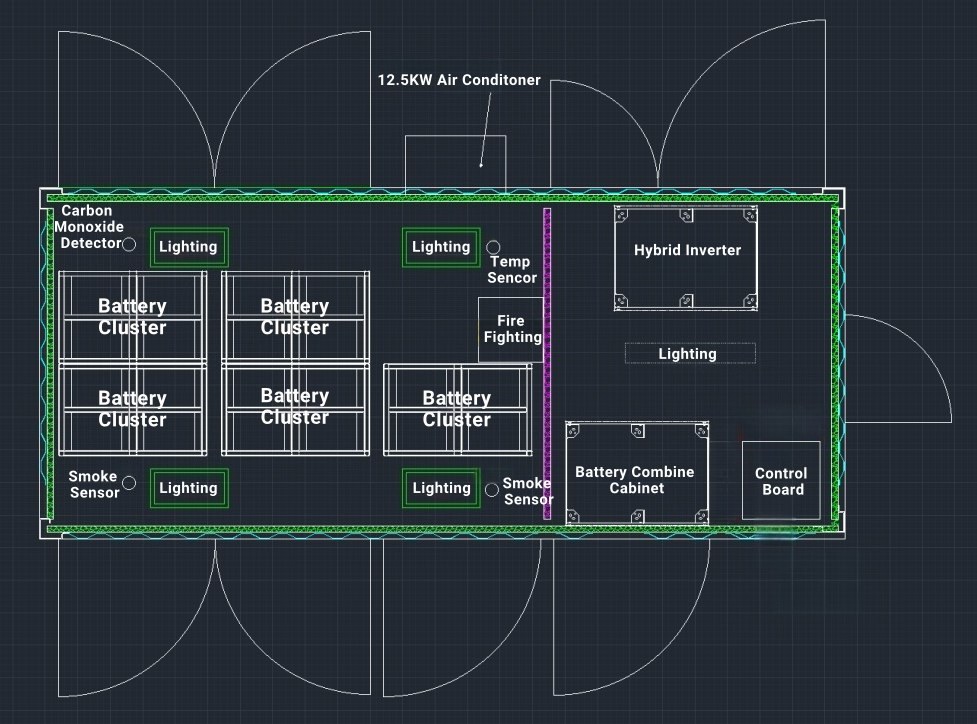

Container Drawing Inside
Designed for businesses, commercial solar+storage systems combine renewable energy generation with smart battery storage, cutting electricity expenses while providing backup power and reducing carbon footprints
Read More

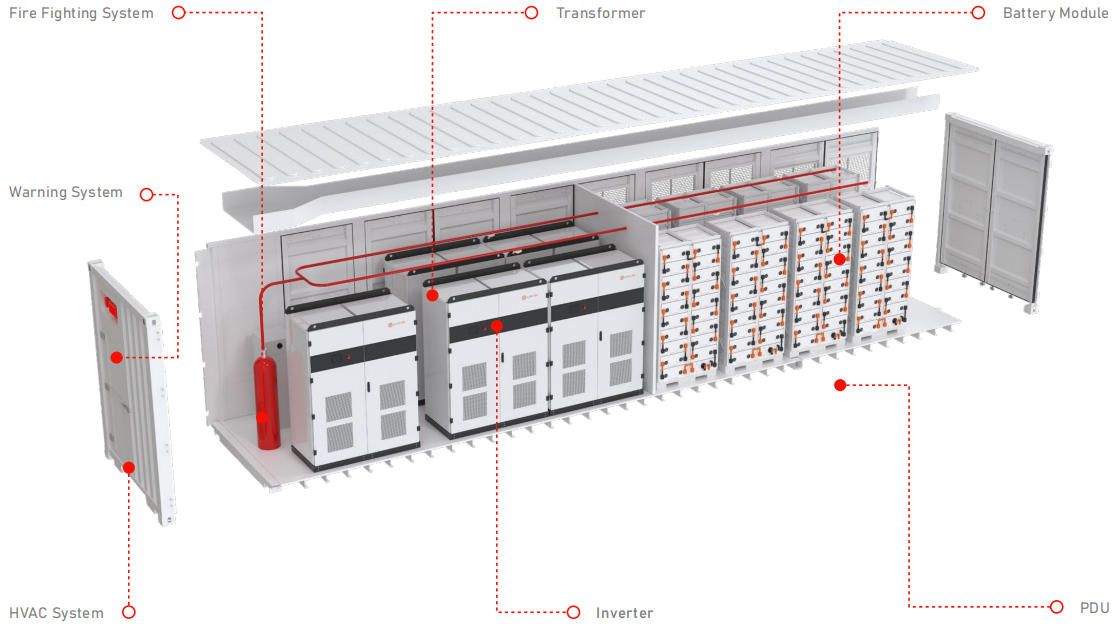

These systems are designed for outdoor commercial/industrial (C&I) applications, integrating lithium iron phosphate (LFP) battery technology with advanced energy management.Mainly used for renewables integration,peak shaving,backup power etc.
Read More
Greenwatt 20FT BESS Container is a powerful energy storage solution featuring battery status monitoring, event logging, dynamic balancing, and advanced protection systems. It also includes automatic fire detection and alarm systems, ensuring safe and efficient energy management.
Read More
Greenwatt high-efficiency photovoltaic system with integrated energy storage for uninterrupted power supply and cost savings. it boost sustainability with our 150KW 250KW 500KW industrial solar storage system – reliable, scalable, and perfect for reducing energy costs in commercial applications. The system cut energy bills and carbon footprints. Our solar energy storage system delivers stable power for factories, warehouses, and large facilities.
Read More
GREENWATT residential solar energy storage system is an integrated solution designed to harness, store, and manage solar power efficiently for household use. It mainly consisit of hybrid efficiency solar panel, hybrid solar inverter, energy storage lithium battery with EMS, PV cable, mounting bracket system.
Read More

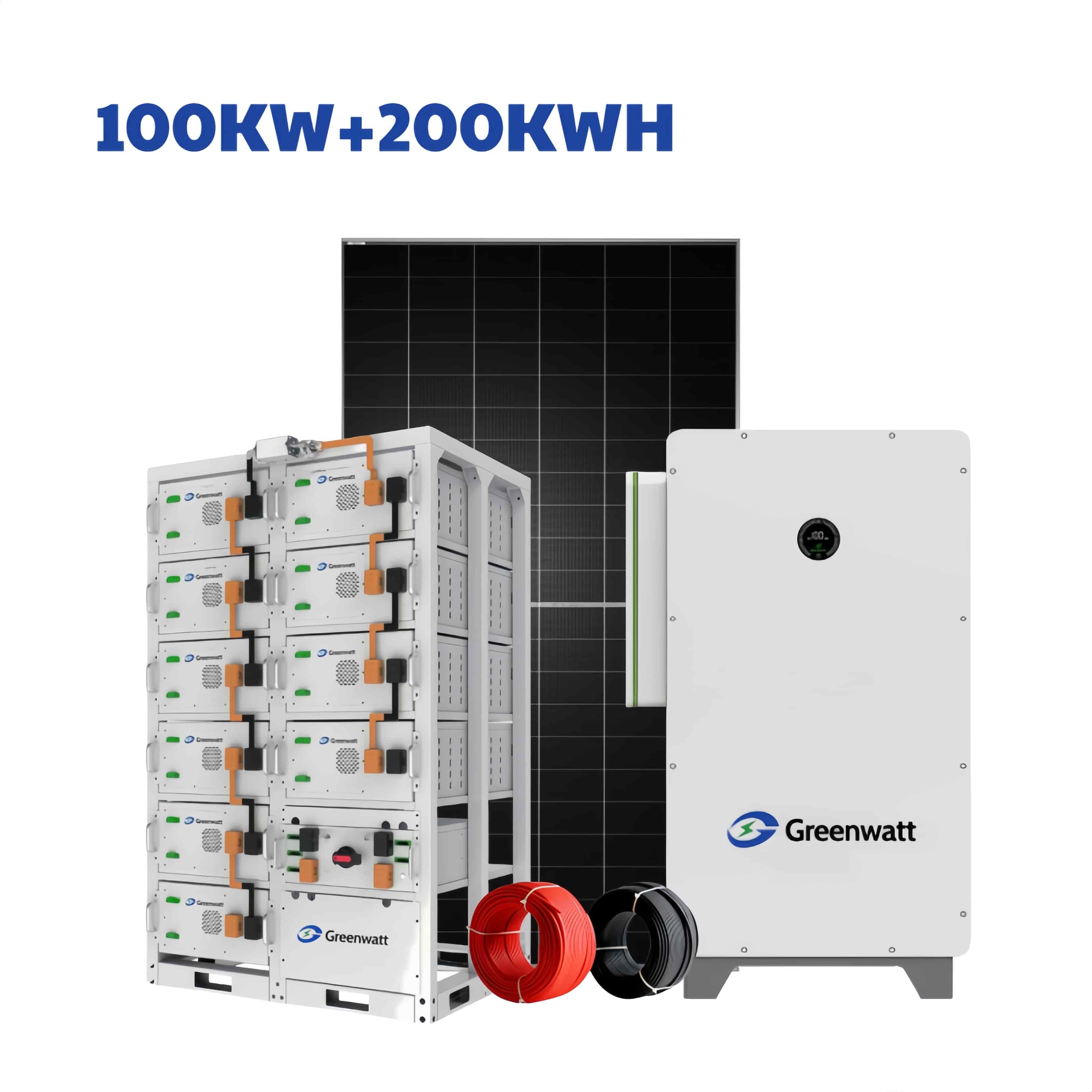

Designed for commercial and industrial applications, the Greenwatt 100kW Three-Phase energy storage system offers exceptional flexibility, scalability, and efficiency. It optimizes solar energy harvesting, making it an ideal choice for businesses seeking a reliable and future-proof energy solution. The system is scalable up to 300kW, allowing for seamless expansion as energy demands grow. Additionally, users can monitor, control, and adjust settings remotely via a smart mobile app, ensuring optimal performance and real-time management
